| Article no. | 30201902 |

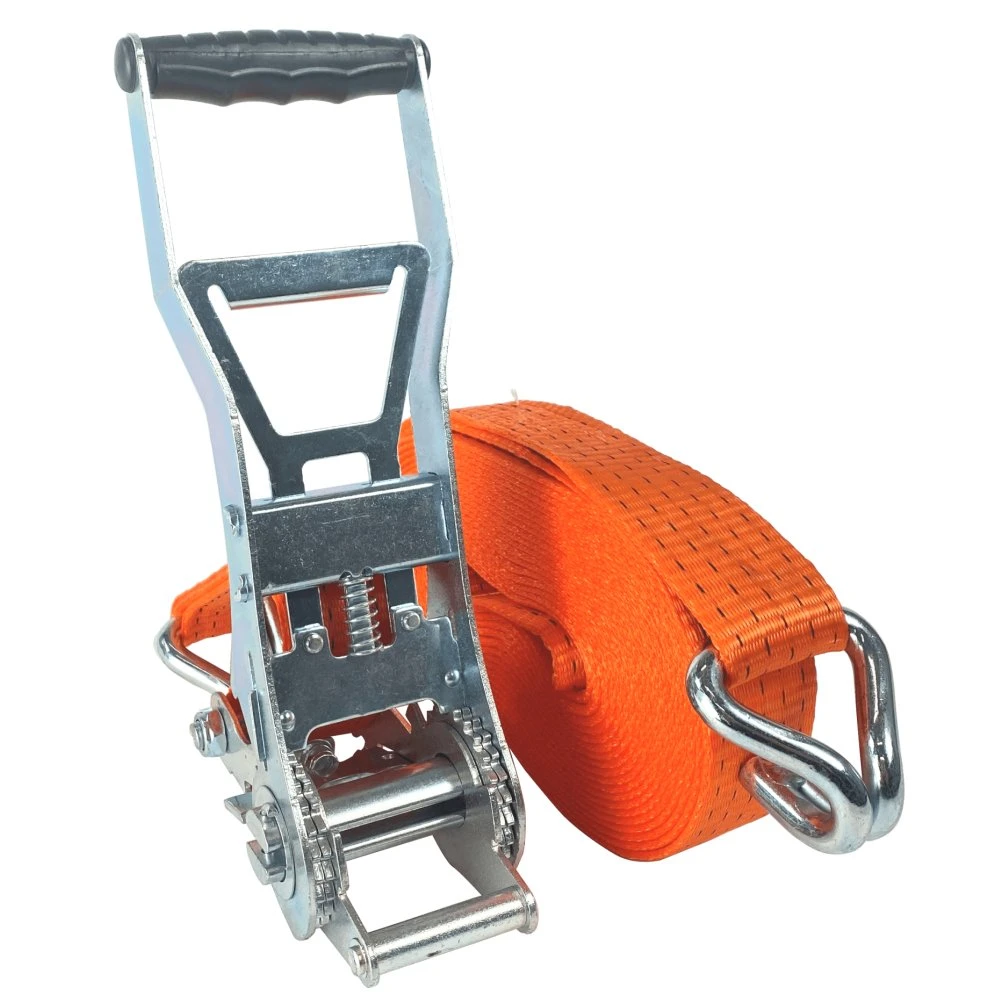

| Type | R50506 – Ergo (long ratchet) |
| Length ratchet tie down | 10 m |
| Certificate | 4572-DNVGL-01 |
| Test method | EN 12195-2 |
| Lashing Capacity LC linear | 5000 daN |
| Lashing Capacity LC System | 10000 daN |
| Breaking Force Lashing BF | 15,000 daN |
| Standard hand force SHF | 50 daN |
| Standard tension force STF | 500 daN |
| Lashing width | 75 mm |
| Elongation at LC | ≤ 5 % |
| LGF / LGL | 9,6 m / 0,4 m |
| Fittings | double J-hook |
| Material ratchet | blue passivated steel (free of chromium 6) |
| Material webbing | polyester yarns with polypropylene coating |
| Color webbing | orange |
| Recycling Identification Code | 01 |
| Net weight per ratchet | 7.5 kg |
| Quantity per box | 4 pcs |
| Weight per box | 30.5 kg |
| Size box – L x W x H | 540 x 280 x 240 mm |
| Boxes per pallet | 24 box |
| Quantity per pallet | 192 pcs |
| Pallet size, incl. pallet - L x W x H | 1100 x 800 x 1100 mm |
| Weight pallet, incl. pallet | 746 kg |
| Tolerance Dimensions +/- | 2% |
| Tolerance Weights +/- | 5% |
| HS-code | 63079098 |
| GTIN | 8717188018254 |
| Country of origin | China |
| Last date approved/revised (dd-mm-yy) | 01-05-26 |
