| Article no. | 30202007 |

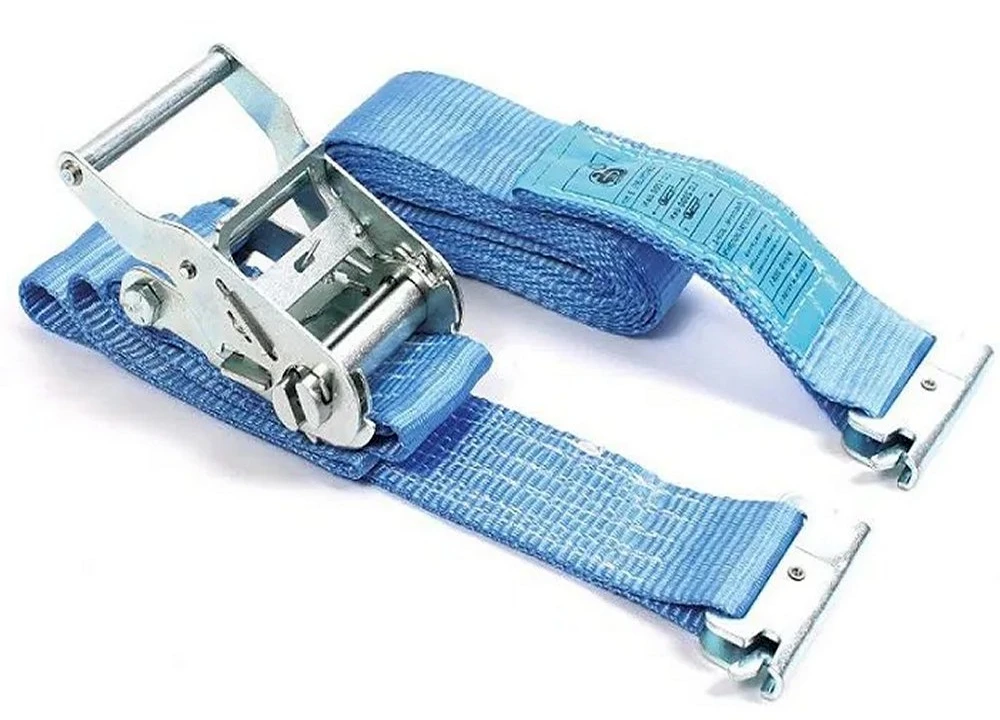

| Type | Ratchet Tie Down - E-track |
| Length ratchet tie down | 6 m |
| Certificate | 4572-DNVGL-08 |
| Test method | EN 12195-2 |
| Lashing Capacity LC linear | 1000 daN |
| Lashing Capacity LC System | 2000 daN |
| Breaking Force Lashing BF | 3,000 daN |
| Standard hand force SHF | 50 daN |
| Standard tension force STF | 260 daN |
| Lashing width | 50 mm |
| Elongation at LC | ≤ 5 % |
| LGF / LGL | 0,4 m / 5,6 m |
| Fittings | E-track |
| Material ratchet | blue passivated steel (free of chromium 6) |
| Material webbing | polyester yarns with polypropylene coating |
| Color webbing | blue |
| Recycling Identification Code | 01 |
| Net weight per ratchet | 1.48 kg |
| Quantity per box | 18 pcs |
| Weight per box | 27.1 kg |
| Size box – L x W x H | 540 x 280 x 240 mm |
| Boxes per pallet | 24 box |
| Quantity per pallet | 432 pcs |
| Pallet size, incl. pallet - L x W x H | 1100 x 800 x 1100 mm |
| Weight pallet, incl. pallet | 665 kg |
| Tolerance Dimensions +/- | 2% |
| Tolerance Weights +/- | 5% |
| HS-code | 63079098 |
| Country of origin | China |
| Last date approved/revised (dd-mm-yy) | 02-03-26 |
