| Article no. | 30201762 |

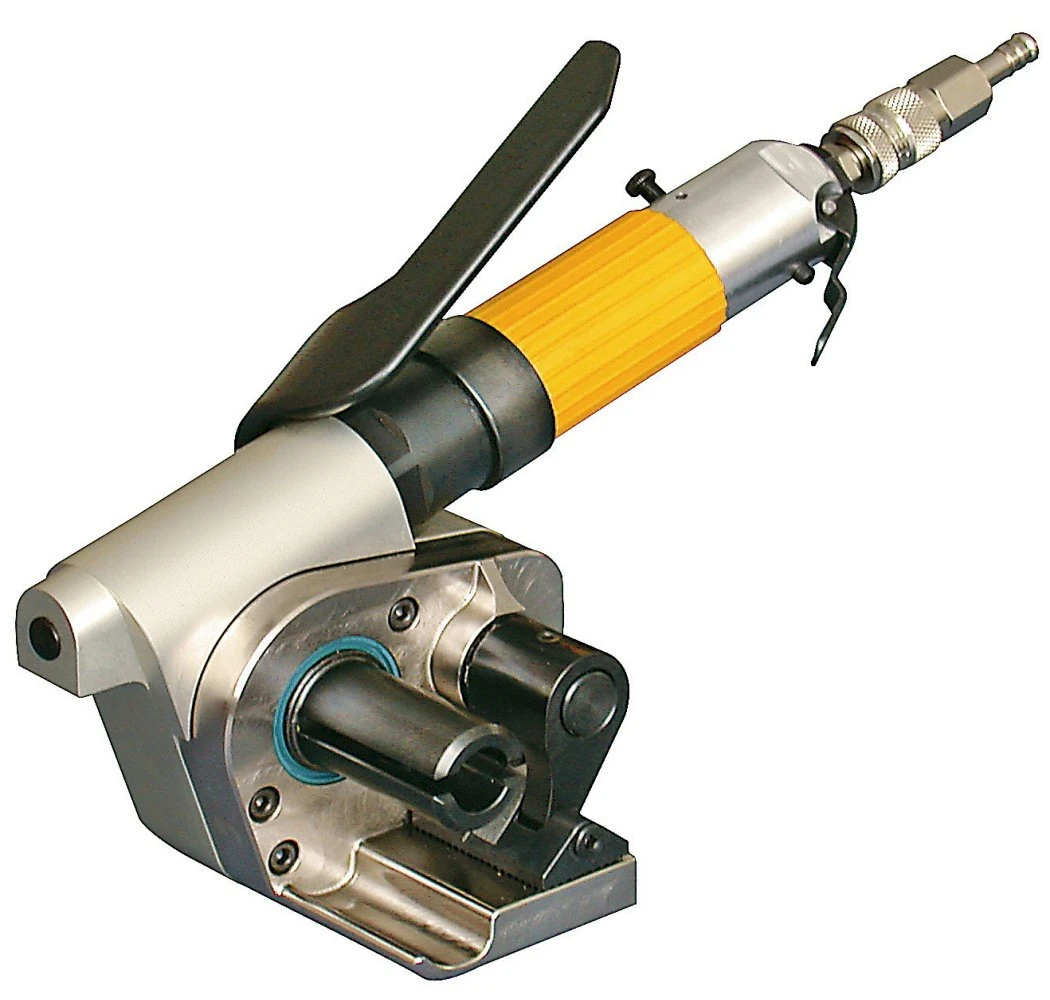

| Product name | PT50 |
| Max. width lashing (A) | 13 up to 50 mm |
| Tickness lashing | 0,8 up to 2,4 mm |
| Suitable for | composite and woven lashing |
| Weight tensioner | 4.35 kg |
| Dimensions | 305 x 135 x 225 mm |
| Operating pressure compressed air - tension force - air consumption | 200 kPa / 2.0 bar / 29 psi - 2.5 kN – 230 l/min |
| Operating pressure compressed air - tension force - air consumption (2) | 300 kPa / 3.0 bar / 43 psi - 3.5 kN – 280 l/min |
| Operating pressure compressed air - tension force - air consumption (3) | 400 kPa / 4.0 bar / 58 psi - 5.0 kN – 330 l/min |
| Operating pressure compressed air - tension force - air consumption (4) | 500 kPa / 5.0 bar / 72 psi - 6.0 kN – 380 l/min |
| Operating pressure compressed air - tension force - air consumption (5) | 600 kPa / 6.0 bar / 87 psi - 6.4 kN – 470 l/min |
| Operating pressure compressed air - tension force - air consumption (6) | 700 kPa / 7.0 bar / 100 psi - 7.5 kN – 610 l/min |
| Required oil mist in the compressed air, app. | 21 mm³ / min |
| Type of oil at ambient temperature | < 5°C / 41 °F = ISO VG 46 / DIN 51502 DL 46 |
| Type of oil at ambient temperature (1) | 5°C - 35°C / 41 °F – 95 °F = ISO VG 150 / DIN 51502 DL 150 |
| Type of oil at ambient temperature (2) | 25°C - 60°C / 77 °F - 140 °F = ISO VG 32 / DIN 51502 DL 32 |
| Type of oil at ambient temperature (3) | Machine Directive 98/37 EC/ EN 292-1 /EN 292-2 |
| Warranty period | 1 year warranty period under normal use |
| Service maintenance | Veltkamp is an authorized service point |
| HS-code | 84224000 |
| Country of origin | Germany |
| Last date approved/revised (dd-mm-yy) | 01-07-25 |
